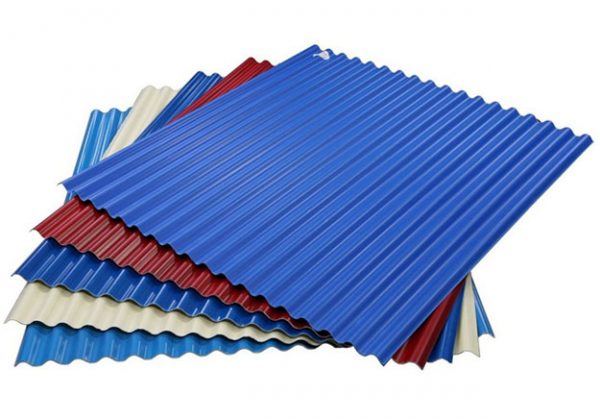

Aluminium Corrugated Sheet

Aluminium Corrugated Sheet
Aluminium Corrugated SheetAluminium Corrugated Sheet

Aluminium Corrugated Sheet

Aluminium Sheet is ideal for all roofing and cladding needs. It is easy to use, durable and economical to work with. Using aluminium for roofing has many benefits.

Send Enquiry

Product Description

Aluminium Sheet is ideal for all roofing and cladding needs. It is easy to use, durable and economical to work with. Using aluminium for roofing has many benefits. Some of them are the following:

  • Aluminium roofing sheets are extremely light and have a high strength-to-weight ratio.
  • Aluminium is an increasingly popular choice for use in installations and buildings. It is corrosion-resistant in almost any kind of environment. Even in highly corrosive industrial environments, it is resistant to fumes and vapours of organic compounds and to chemicals like ammonia, carbon dioxide and acids such as hydrochloric acid, nitric acid and sulphuric acid. Such corrosion resistance gives the metal a long life and keeps it looking good throughout its life.
  • The shine and brightness of aluminium livens its surroundings, and, because it doesn’t stain, discolour or rot, it keeps its brightness and shine for a long time. Aluminium corrugated sheets can take a variety of finishes, colours and textures, which protect them and further enhance their appearance.
  • An aluminium structure can be easily dismantled, transported and re-assembled in a new location.
  • Though the metal is a good conductor of heat, its high reflectivity for radiant heat and light (75 to 80 per cent when new, 60 per cent after several years) keeps the interiors of aluminium building from five to eight degrees celsius cooler in summer, while its low emission rate cuts heat loss in winter.
  • It is easy to maintain and wash.

Specification
Thickness: 0.40 mm & 27 guage
Width: 3’
Length: 8’ to 10’

Physical properties

Alloy (AA)TemperUTS (mpa)Yield stress
(0.2% proof stress)
Elongation %
Min Max
3003H18 170 -165 1
3105 H18 190 -165 1
8011H18 175 -165 2

Chemical composition (%)

Alloy (AA)AlCuMgSiFeMnZnTiCrRemarks
8011 Remainder 0.20 0.10 0.60 - 0.95 0.60 - 0.95 0.10 0.20 0.20 0.20 -
3003 Remainder0.10 0.10 0.60 0.70 0.80 - 1.20 0.20 0.20 - -
3105 Remainder0.30 0.20 — 0.80 0.60 0.70 0.2 - 0.8 0.40 0.10 0.20 -
5052 Remainder0.10 1.70 — 2.60 0.60 0.70 0.50 0.20 - 0.25 Cr+Mn=0.50

Other typical properties

Circular corrugated sheet0.30 - 1.22 mm
Industrial troughed sheets0.40 - 1.63mm
Curvomatic troughed sheets0.40 - 1.22mm
